4K HDMI2.0 Extended Cable

Main Features:

Standard HDMI2.0, Customized length, max 150meters

* Support HDCP2.2 bidirectional EDID and HDCP, HEAC

* Support 1080P, 4K*2K60Hz, 3D HD transit

* Single channel transmission rate up to 6Gbps/channel, total bandwidth 18Gbps

* Plug and play, customers don't need to make any settings

* Hybrid and extension cable integrates with fiber and copper wire make it light and flexible

* Built-in automatic balance system, provide smooth, clear and stable picture

* Built-in ESD electrostatic protection circuit to ensure the system safety



  • Product Detail
  • Download
  • Product Case

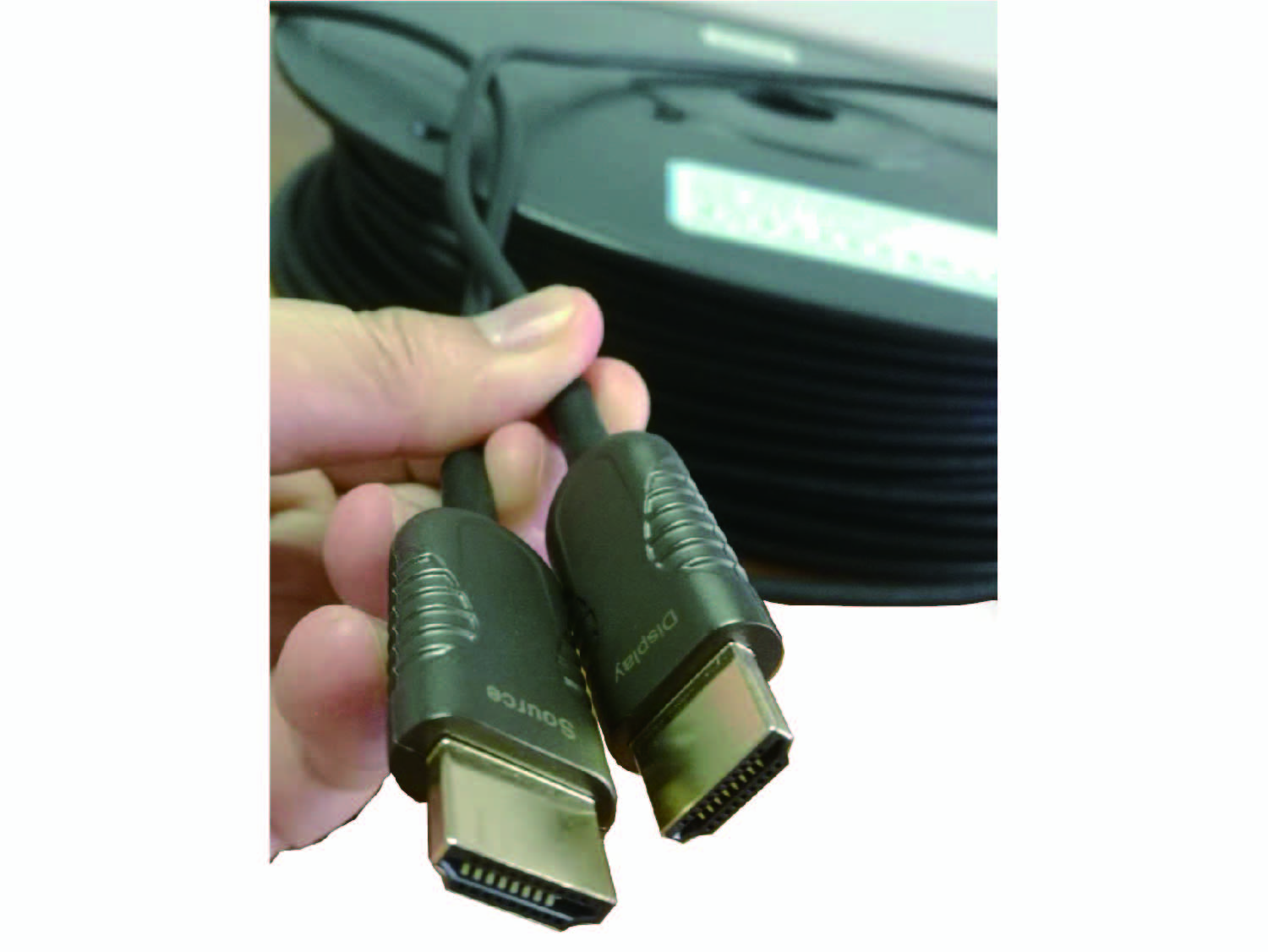

The HDMI Hybrid Cable Extension Cable (HDMI AOC) is the best solution for HDMI long-distance transmission. TMDS uses 4 multi-mode fiber transmissions, embedded advanced optical engine at both ends, single channel can support up to 6Gbps transmission rate, supported HDMI 2.0 standard; power supply, HDCP, EDID, HEAC use unique high-purity copper wire Transmission to ensure HDMI compatibility. The  combination of fiber optic and copper cable provides excellent HDMI signal integrity, up to 150 meters (can be customized), plug and play, no external power supply. Remark: Due to the one-way transmission characteristics of the optical signal, the HDMI input and output are different at both ends. Please pay attention to the source end. Connect the player, signal source or other HDMI signal device output . Display terminal Connect the display device.



HDMI2.0 150 Meters HDMI Cable.pdf
