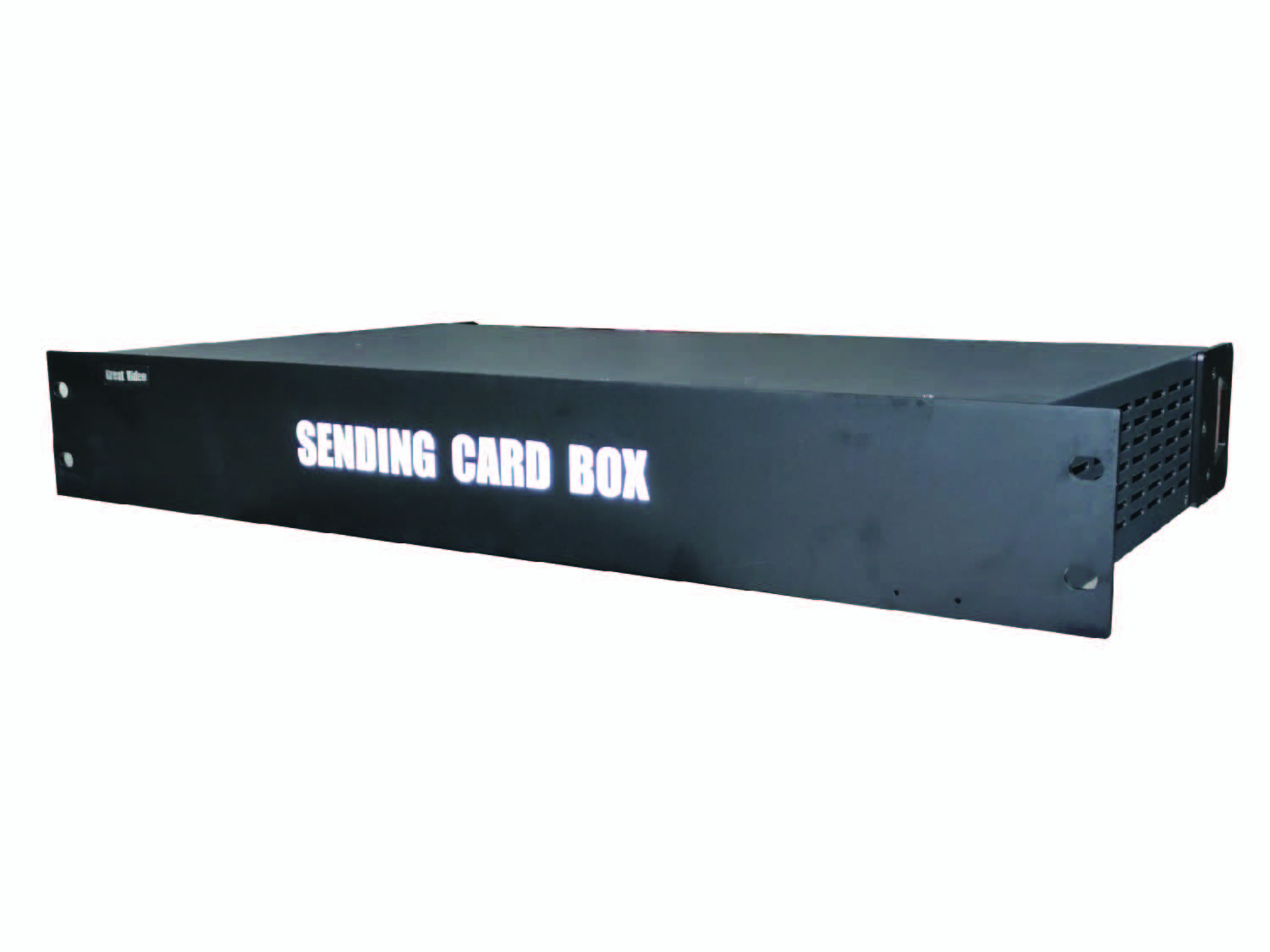

SS6 Structure with DVI Distributor

Main Features:

With centralized power supply and built-in cooling fan, could install 6 small sender cards, 2 large sender cards

* 3 DVI signal distribution, each DVI input is assigned 2 DVI outputs

* Compatible with Linsn 801/802; Nova MSD300, MSD600; Mooncell; Colorlight IT7; DBSTAR 2011 Sender Cards

* System integration, exquisite structure design, module structure

* The structure adopts fan cooling system

* Signal adaptive matching design solves the video High-resolution interference and non-synchronization of signals during distribution

* Point-by-point correction technology allows manufacturers to not so focus on LED brightness and color requirements.



  • Product Detail
  • Download
  • Product Case

The SS6 video distribution chassis built-in DVI splitter, each DVI input can be assigned to 2 DVI outputs. The structure supports 8 sending card installation card slots (4 Nova MSD600), making the installation easier.

SS6 is compatible with all manufacturers' sender cards, including Linsn 801/802, Nova MSD300, Nova MSD600, Mooncell, Colorlight IT7 and DBSTAR 2011.

Input interface: 3 x DVI (compatible with HDMI 1.3)

Output interface: 6 x DVI (compatible with HDMI 1.3)

Dimension: 480mmx320mmx67mm

Package: 540mmx380mmx140mm

Net weight: 3.0kg

Gross weight: 5.0kg

Working temperature: 0°C~40°C

Humidity: 10%~85%
